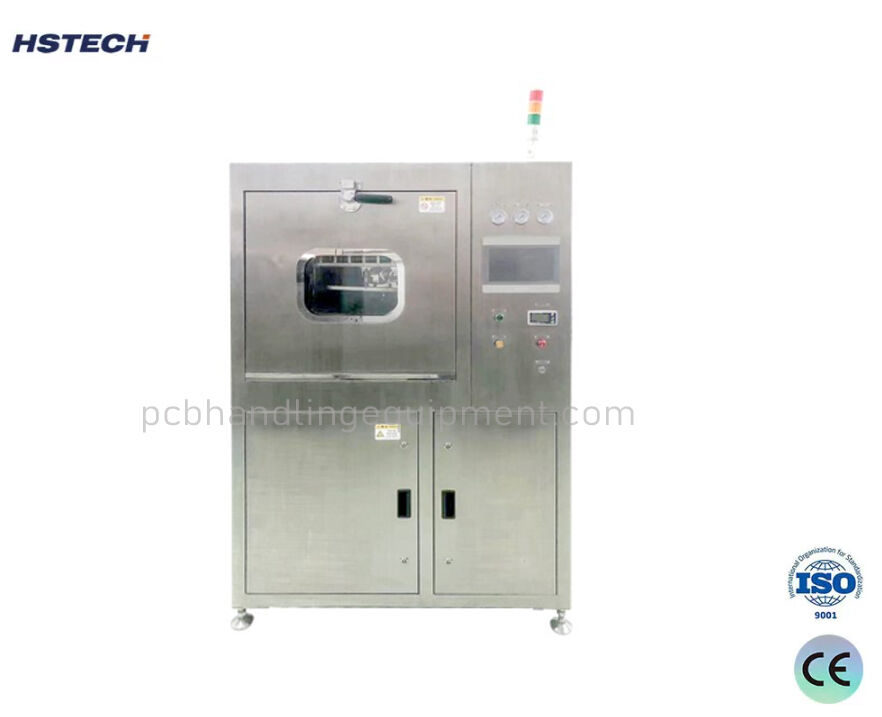

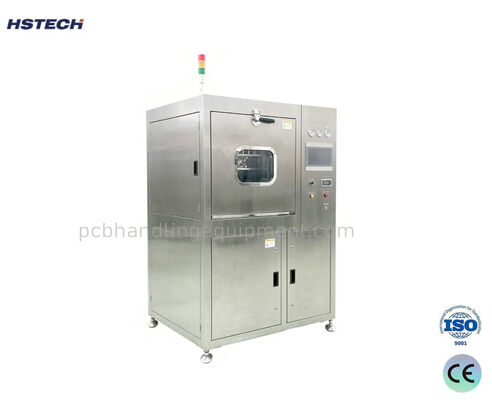

Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System

Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System

Merknaam:	HSTECH
Modelnummer:	HS-810
Moq:	1 st
Prijs:	negotiable
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	1 Instellen

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

CE,ISO

Productnaam:

Offline PCBA-reinigingsmachine

Machinekracht:

ongeveer 26kw

Materiaal machinelichaam:

304 roestvrij staal

Droogtemperatuur:

Maximaal 99°

Voeding:

AC380V 50HZ 65A

Garantie:

1 jaar

Verpakking Details:

Houten

Levering vermogen:

1 Instellen

Markeren:

touch screen PCBA cleaning machine

offline cleaning machine with spray bar

SMT cleaning equipment with quick connector

Productbeschrijving

Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System

The HS-810 integrated offline PCBA cleaning machine is an economical and efficient batch cleaning system designed to remove various residues from electronic products. This advanced system handles water-soluble residues, RMA (moderately active rosin), lead-free flux without washing, electroplating salts, fingerprints, dust, and solder balls. The complete cleaning, rinsing, and drying process occurs within a single chamber, effectively reducing chemical usage and consumption.

Key Features

304 Stainless steel machine body with touch screen control
Suitable for all cleaning requirements with programmable cycle cleaning
Cleaning solvent recycling system saves chemical consumption
Multiple cleaning nozzles for fast cleaning times
Three cleaning bars (top, middle, bottom) for 360-degree cleaning without blind spots
Observation chamber for monitoring the entire cleaning process
Circulating hot water system for chemical cleaning section
External exhaust port with regulating door and quick connector spray bar system
Low liquid level automatic water filling function

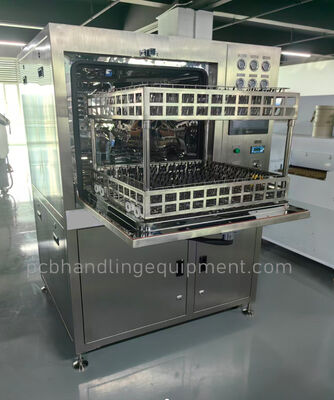

Oversized cleaning basket (L610×W560×H100mm) with dual layer design for large PCBA requirements

Standard Configuration

Component	Included
Touch screen control system	Yes
Alarm system	Yes
Durable 304 stainless steel construction	Yes
Programmable cycle cleaning solutions	Yes
Cleaning solvent recycling system	Yes
Three cleaning bars (top, middle, bottom)	Yes
Observation cleaning window	Yes
Stainless steel PCB structure	Yes
Chemical cleaning hot water cycle system	Yes
Exhaust air connector	Yes
Fast connection cleaning spray bar	Yes
Low liquid automatic solvent filling system	Yes
Cleaning basket: 610×560×100mm, dual layer	Yes
3 PH, 380 VAC, 5 wires power supply	Yes

Optional Equipment

Option	Availability
0.3T/H DI water producing device (resistivity above 15 meters)	Yes
Customized fixtures	Yes

Technical Specifications

Parameter	Specification
Machine size	L1500 × W1300 × H1830 (mm)
Inner chamber size	L690 × W620 × H715 (mm)
Cleaning basket size	610 × 560 × 100 (mm), dual layer
Machine power	Approx 26kW
Control mode	Touch screen + PLC
Machine body material	304 stainless steel
Mesh material	304 stainless steel
Power supply	AC380V 50HZ 65A
Air supply	0.45Mpa～0.7Mpa
Weight	Approx 600kg
DI water requirement	>15MΩ
DI water inlet	0.5 m³/h
Noise	< 70 dB
Spraying pressure	30-40psi
PCBA thickness	0-100mm
PCBA weight	Less than 10kg
Chemical cleaning temperature	25-75℃
Drying temperature	Max 99℃
Spray pipe installation	Fast connector, easy replacement
Water pipe installation	Fast connector, easy maintenance
Chemical solvent filter	0.45μm (filters solder paste, rosin, and flux contaminants)
DI water filter	0.45μm (filters solder paste, rosin, and flux contaminants)

Cleaning Fixtures

Cleaning Performance

Applications

Communications & Consumer Electronics: Post-soldering cleaning of PCBs/PCBAs for routers, base station equipment, and precision instruments. Removes rosin and solder paste residues to prevent short circuits and signal interference.

R&D Prototyping / Pilot Production: Cleaning of sample boards and small-batch pilot production boards in laboratories and R&D centers. Offers flexible adaptability to various PCBA models and contamination levels.

PCBA Repair & Rework Cleaning: Cleaning of circuit boards following repair or rework procedures. Removes residual solder, flux, and contaminants to restore board performance and reduce scrap rates.

Precision Electronics Packaging: Cleaning of semiconductor packages and micro-modules. Removes microscopic particles and organic residues to meet stringent high-precision assembly requirements.
